R+F Screw Press Series
Maximum efficiency, minimal maintenance, and superior cake dryness for industrial and municipal applications.
R+F Screw Press Quick Facts
01
+32% Dryness
Superior cake solids compared to conventional belt filter presses. Reduced disposal costs from day one.
02
Low-Speed Wear
Operating at only 40–80 rpm. Minimal mechanical stress ensures maximum uptime and 24/7 reliability.
03
Multi-Sludge Ready
Proven performance for Municipal, Food & Beverage, Chemical, and Oily Sludge applications.
The R+F Dewatering Principle
A fully enclosed, low-speed system engineered for high-performance solids separation.
Flocculation Zone
Precision polymer dosing creates a stable floc structure. This chemical conditioning is the foundation for a maximized capture rate and crystal-clear filtrate.
Thickening Zone
Initial gravity drainage removes the bulk of free water. The sludge volume is rapidly reduced before entering the high-pressure zone, optimizing throughput.
Seamless Plug & Play
Designed with a compact footprint for easy integration into existing plants. Our fully automated control systems (PLC) ensure a 'set and forget' operation with minimal supervision required by your staff.
Precision Engineering for Maximum Separation

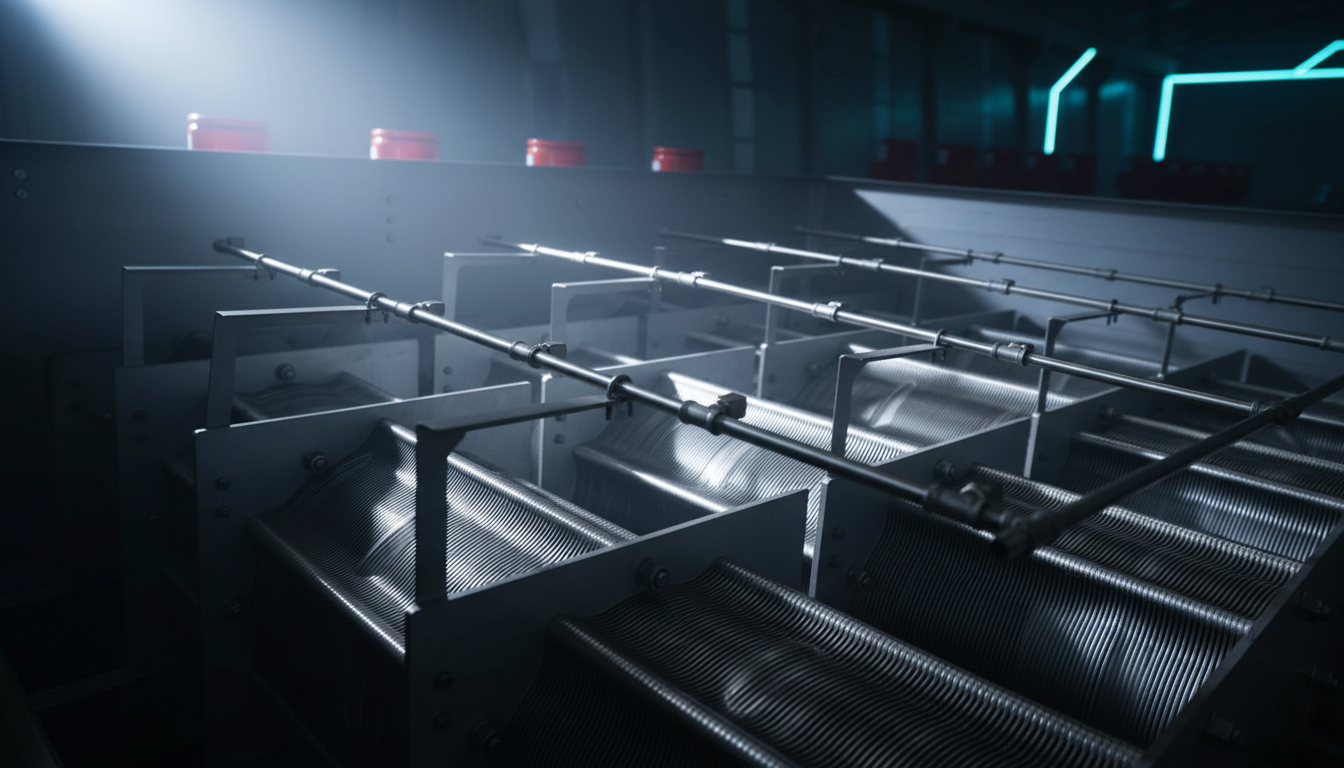

The R+F Multi-Disk Principle
At the core of our screw press series lies a sophisticated multi-disk filter drum. By combining fixed and moving rings with a variable-pitch screw, the system creates increasing pressure as the sludge moves toward the discharge zone.
This dynamic filtration process prevents clogging and ensures a continuous, self-cleaning operation. The result is a highly stable dewatering performance with minimal wash-water consumption and superior filtrate clarity.
R+F SCREW PRESS SERIES — TECHNICAL SPECIFICATIONS
| Model | Capacity (kg DS/h)* | Volume (m³/h)* | Cake Dryness | Filtrate Clarity | Dimensions (LxWxH mm) | Action |
|---|---|---|---|---|---|---|
| RF-131 | ~ 10 | ~ 0.5 | 18 - 25% DS | High Clarity | 1860 x 700 x 915 | Inquiry |
| RF-132 | ~ 20 | ~ 1.0 | 18 - 25% DS | High Clarity | 1905 x 830 x 915 | Inquiry |
| RF-201 | ~ 20 | ~ 1.0 | 20 - 28% DS | High Clarity | 2555 x 920 x 1465 | Inquiry |
| RF-202 | ~ 40 | ~ 2.0 | 20 - 28% DS | High Clarity | 2615 x 960 x 1465 | Inquiry |
| RF-301 | ~ 50 | ~ 2.5 | 22 - 30% DS | High Clarity | 3325 x 870 x 1760 | Inquiry |
| RF-302 | ~ 100 | ~ 5.0 | 22 - 30% DS | High Clarity | 3455 x 1135 x 1760 | Inquiry |
| RF-303 | ~ 150 | ~ 7.5 | 22 - 30% DS | High Clarity | 3670 x 1560 x 1760 | Inquiry |
| RF-351 | ~ 100 | ~ 5.0 | 25 - 32% DS | High Clarity | 3475 x 905 x 1820 | Inquiry |
| RF-352 | ~ 200 | ~ 10.0 | 25 - 32% DS | High Clarity | 3570 x 1285 x 1820 | Inquiry |
| RF-353 | ~ 300 | ~ 15.0 | 25 - 32% DS | High Clarity | 3645 x 1725 x 1820 | Inquiry |
| RF-354 | ~ 400 | ~ 20.0 | 25 - 35% DS | High Clarity | 4130 x 2180 x 1820 | Inquiry |
| RF-401 | ~ 170 | ~ 8.5 | 25 - 35% DS | High Clarity | 3905 x 1070 x 2210 | Inquiry |
| RF-402 | ~ 340 | ~ 17.0 | 25 - 35% DS | High Clarity | 4240 x 1570 x 2210 | Inquiry |
| RF-403 | ~ 510 | ~ 25.5 | 25 - 35% DS | High Clarity | 4465 x 2060 x 2210 | Inquiry |
| RF-404 | ~ 680 | ~ 34.0 | 25 - 35% DS | High Clarity | 4670 x 2630 x 2210 | Inquiry |
* Values based on 2.0% TSS Sludge Concentration. Typical values only. Actual results depend on sludge characteristics, chemical treatment and process configuration.
Municipal Wastewater
Reliable 24/7 dewatering of waste activated and digested sludge. Optimized for high throughput and low polymer consumption.
Food & Beverage
Specialized in handling oily and fatty sludges from dairies, slaughterhouses, and breweries. Easy-to-clean design for hygienic requirements.
Biogas & Agriculture
Efficient separation of fermentation residues (digestate). Our systems reduce storage volumes significantly and produce high-quality solid fertilizer, optimizing your nutrient management and logistics.
Chemical & Pharma
Safe separation of chemically precipitated solids and aggressive process sludges. High resistance and precise pressure control.
Pulp & Paper
Efficient handling of high-volume fibrous sludges. Designed for maximum water recovery and reduced disposal mass.
Request a Technical Quote
Tell us your sludge type, TSS, flow rate and target performance. Our engineering team will recommend the right model and configuration — fast, precise, and project-focused.
